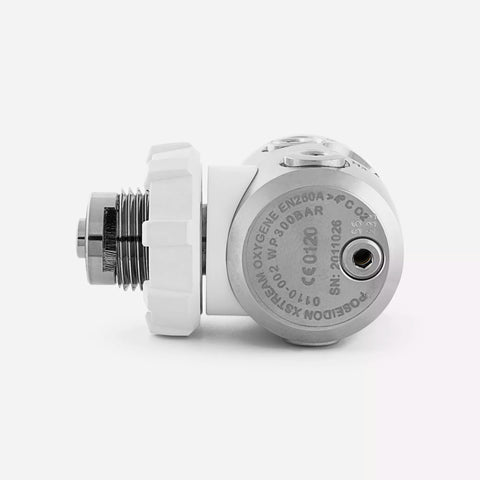

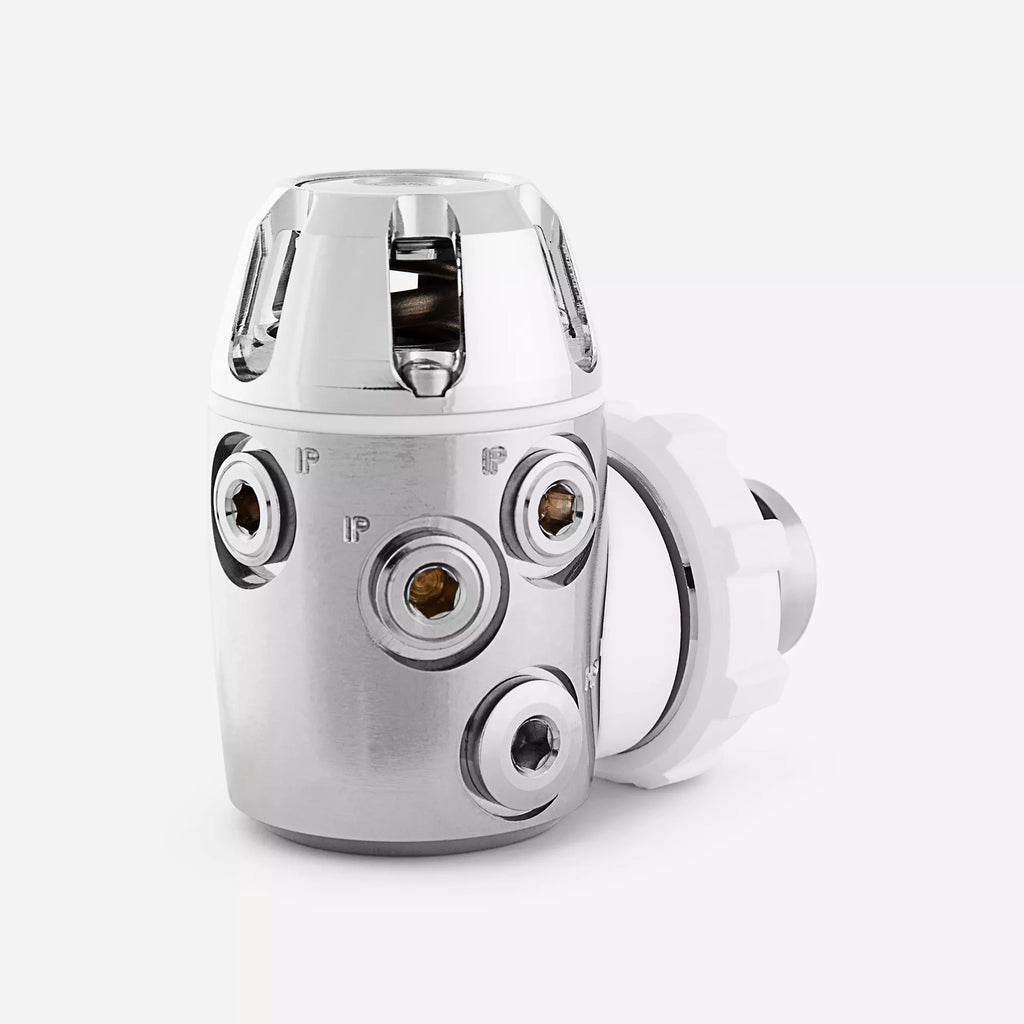

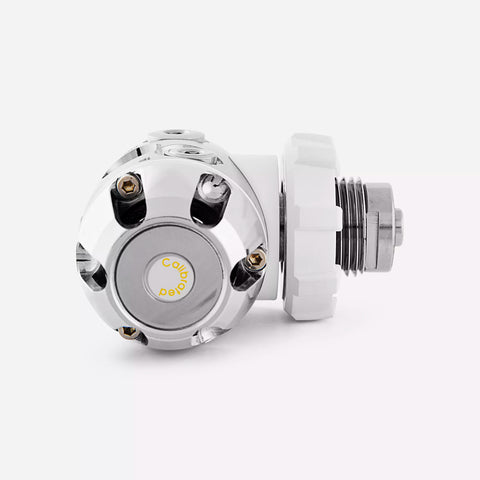

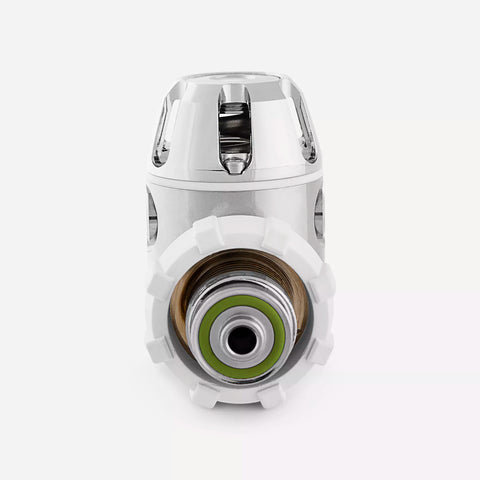

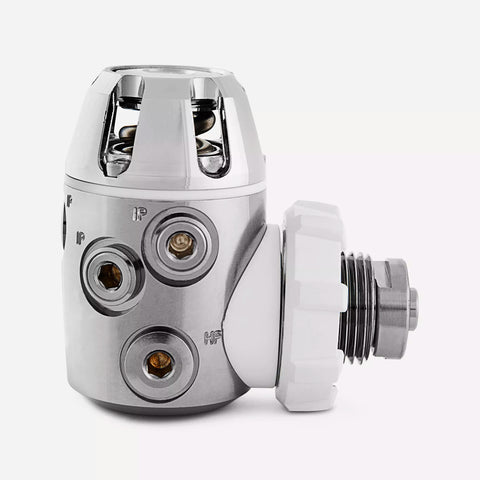

FIRST STAGE XSTREAM OXYGEN M26X2
- Approved for use with 99,95% oxygen
- M26 connection
- 5 LP and 2 HP ports
PRODUCT INFORMATION
The objective; design the most reliable first stage in the world.
A patented ruby ball seal is automatically positioned by the floating seat which balances any upstream pressure equally with the pressure adjustment spring, maintaining the benefits of having a perfect ball as the sealing element without the risks that follow with incorrect sealing pressures. This makes the Xstream Range self-balancing, giving the same high performance, irrespective of the pressure in the cylinder.
Added to this the range has a built in anti freeze protection in its construction. The TDA (Thermo Dynamic Antifreeze) ensures that the through-flowing water keeps the ice away, entirely without fluids or extra diaphragms.
Weight (g): 750
Material: Chrome Plated Brass Construction
TECH SPECS
DIN 5/8" Connection No
EN144-3 M26 Connection Yes
Flowrate (l/cuft per min)5500/194
Oxygen cleaned Yes
Safety Valve Yes
Technique Rolling diaphragm
Thermodynamic anti-freeze protection Yes
Valve Technique Spheric
Wheel Mount Side
Zytel HP Seat Yes
